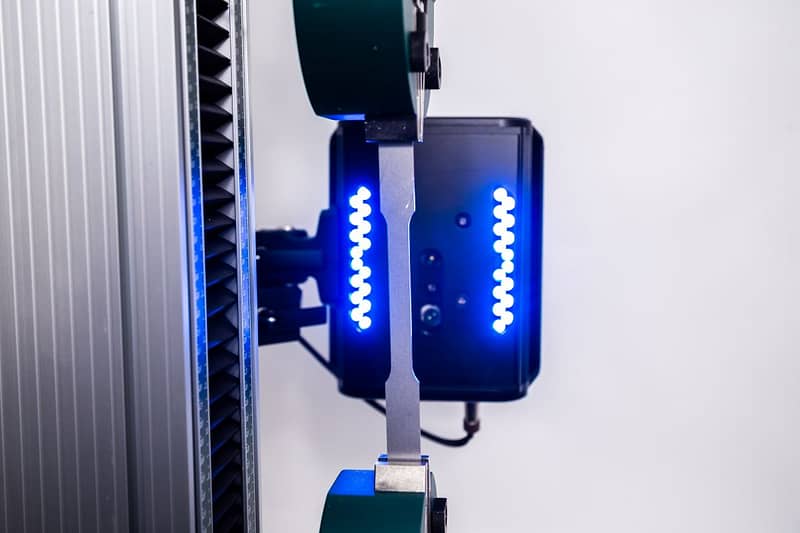

Vector, the only true Clip-On Extensometer replacement.
More affordable than you would think
Looking for a better extensometry solution? Vector is a non-contact extensometer that delivers high-precision strain measurements at a fraction of the cost of video or automated systems. Get in touch with your local distributor for more info.
Does exactly what you need
Engineered for demanding materials testing, Vector supports strain-rate controlled testing to ISO 6892 and ASTM E8 standards, and delivers Class 0.5 (ISO 9513) / Class B1 (ASTM E83) accuracy – even during long-term, high-throughput testing.
Works right out of the box
Unlike clip-on extensometers, Vector requires no manual attachment, calibration, or adjustments. It arrives fully pre-calibrated and works right out of the box, saving time and reducing operator error.
Ready to upgrade?
"*" indicates required fields
A Vector for every test
Vector U200
Vector
Uniaxial Extensometer
Gauge length: 25 to 180 mm
Minimum specimen width: 5 mm
Operating distance: 250 to 350 mm
Vector U70
Vector
Uniaxial Extensometer
Gauge length: 10 to 50 mm
Minimum specimen width: 2 mm
Operating distance: 280 to 320 mm
Vector B80
Vector
Biaxial Extensometer
Gauge length: Axial 7.5 to 70 mm Transverse 6 to 25 mm
Minimal specimen width: Axial 1.5 mm flat 2 mm round Transverse 10 mm flat 12.5 mm round
Operating distance: 285 to 315 mm
