Non-Contact Extensometers

Vector U200

Vector U200 sits within our non-contact extensometer range. This model is suitable for testing medium to large specimens, with a gauge length range of 25-180 mm and widths larger than 5 mm.

With intuitive features, the impact of operator influence on measurement outcomes is removed resulting in repeatability and unparalleled accuracy. With an operating distance of 250 to 350 mm the U200 can accommodate different specimens and test types, ensuring a more efficient approach to testing.

Our Vector Extensometer range only requires simple specimen marking consisting of either filled circles, rings or speckle pattern. By using specific pattern recognition techniques, Vector consistently produces precise measurements without the need for precise positioning or configuration.

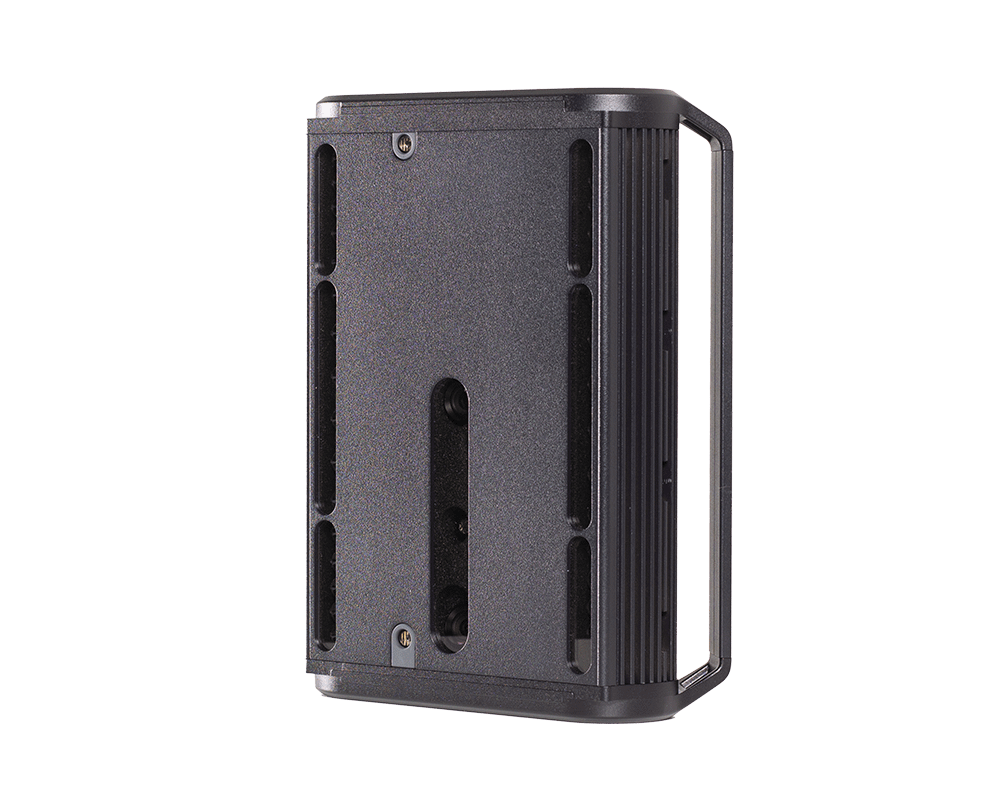

Vector U200
Vector U200

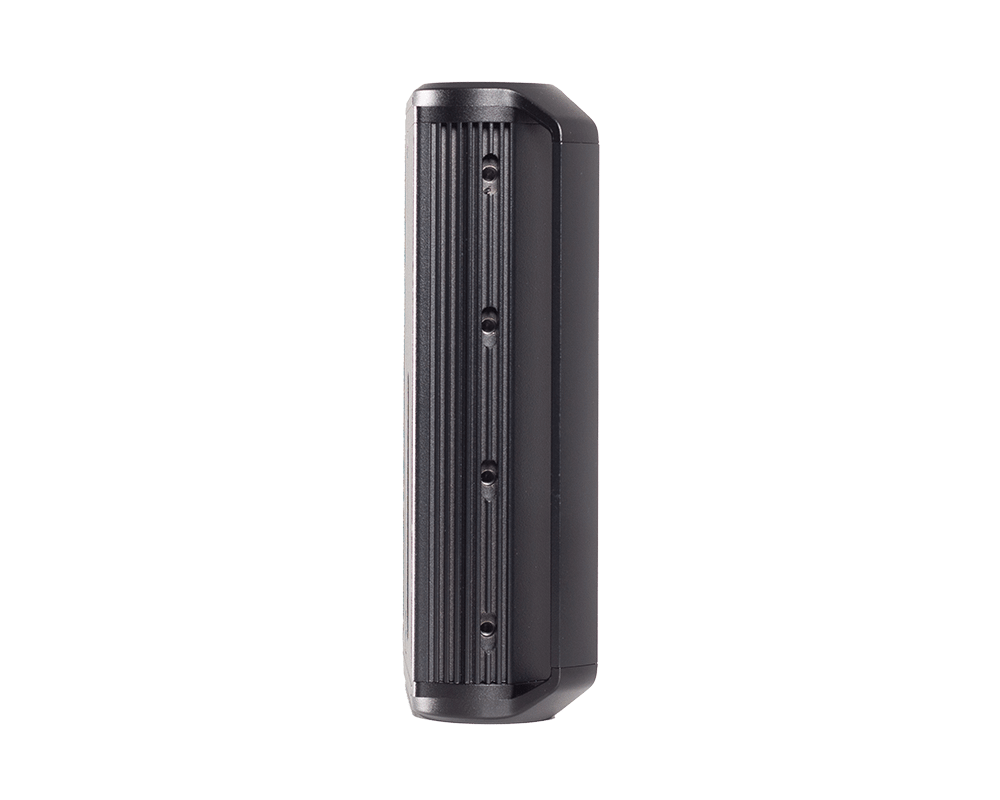

Vector-U200-4

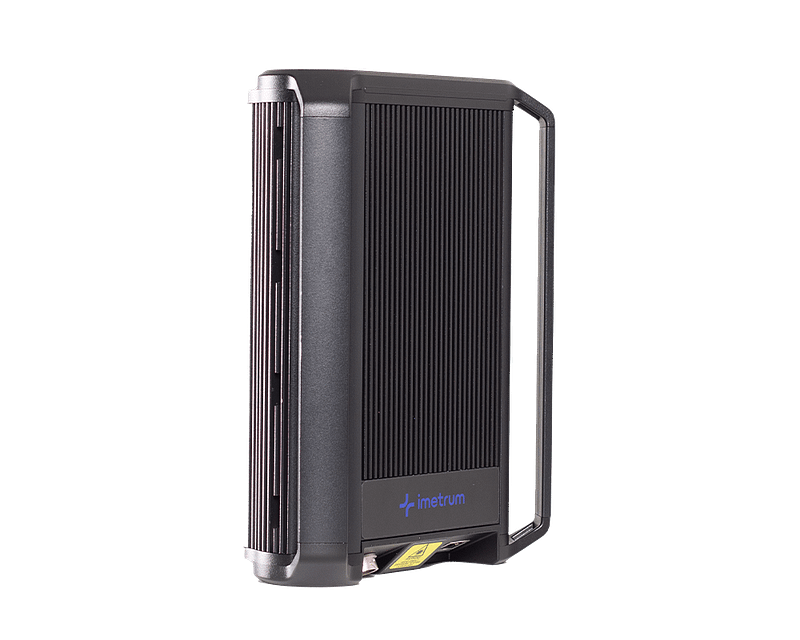

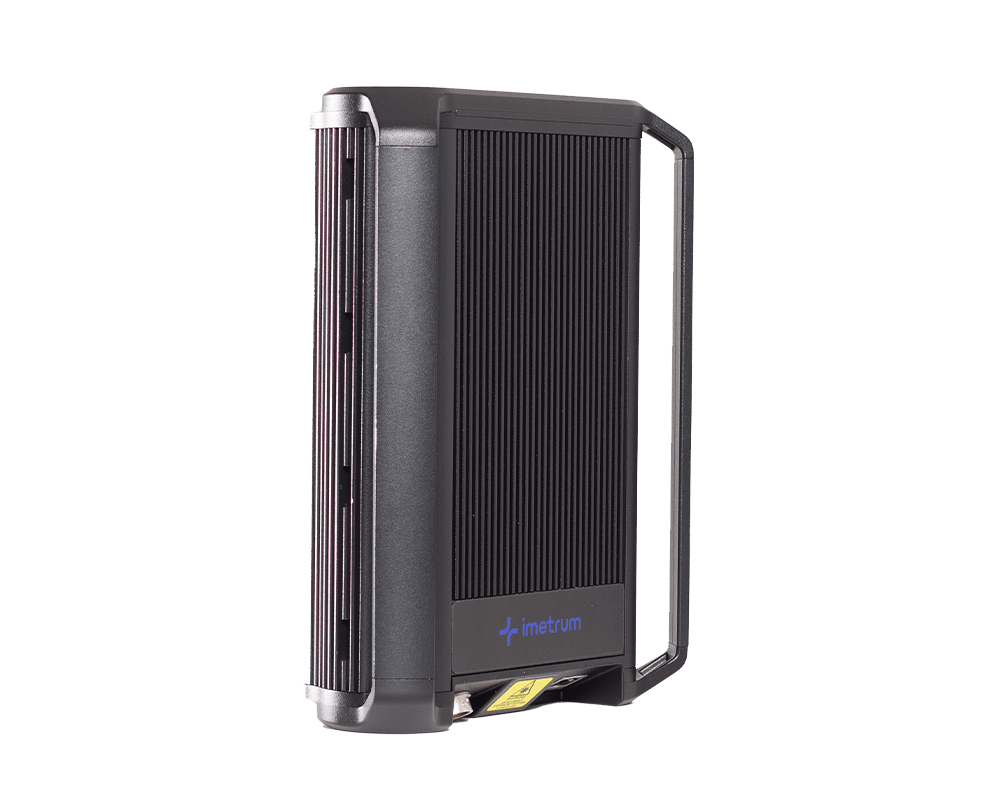

Vector-U200-5

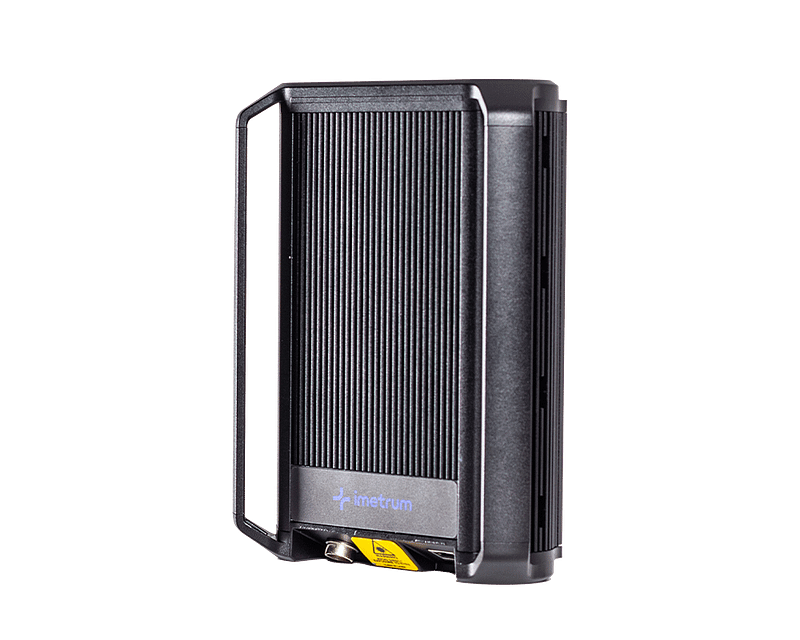

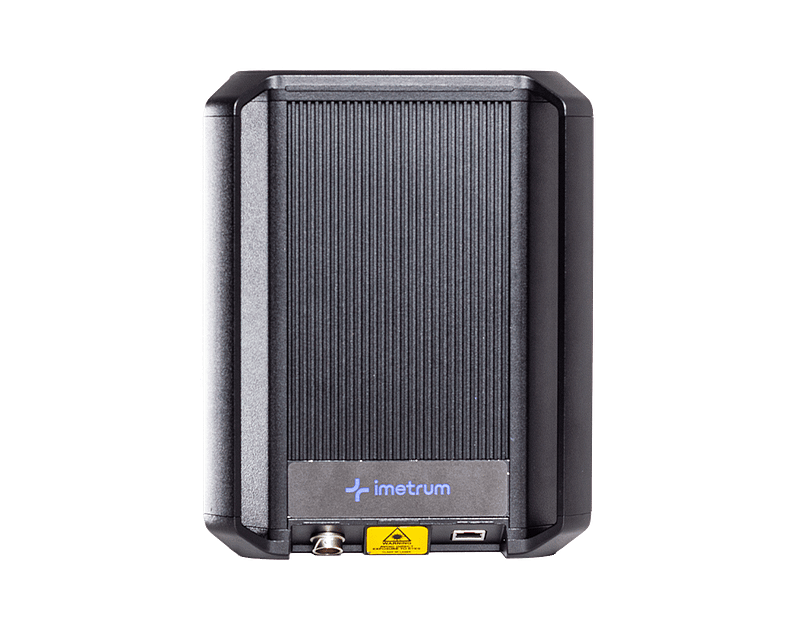

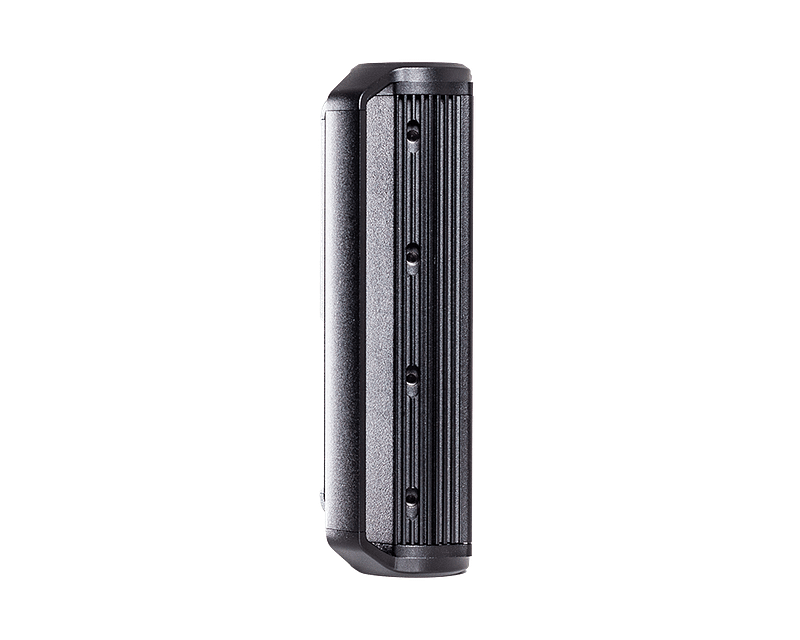

Vector U70
Vector U70
Vector U70

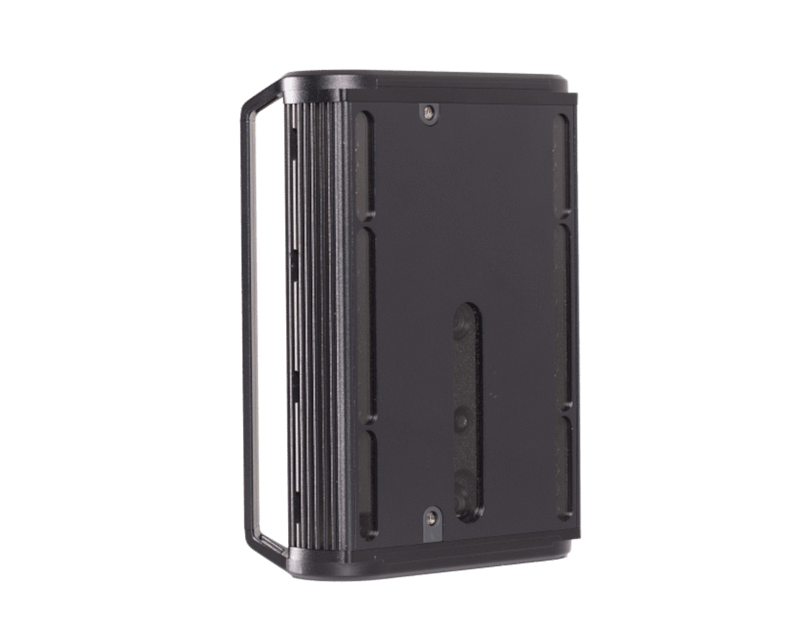

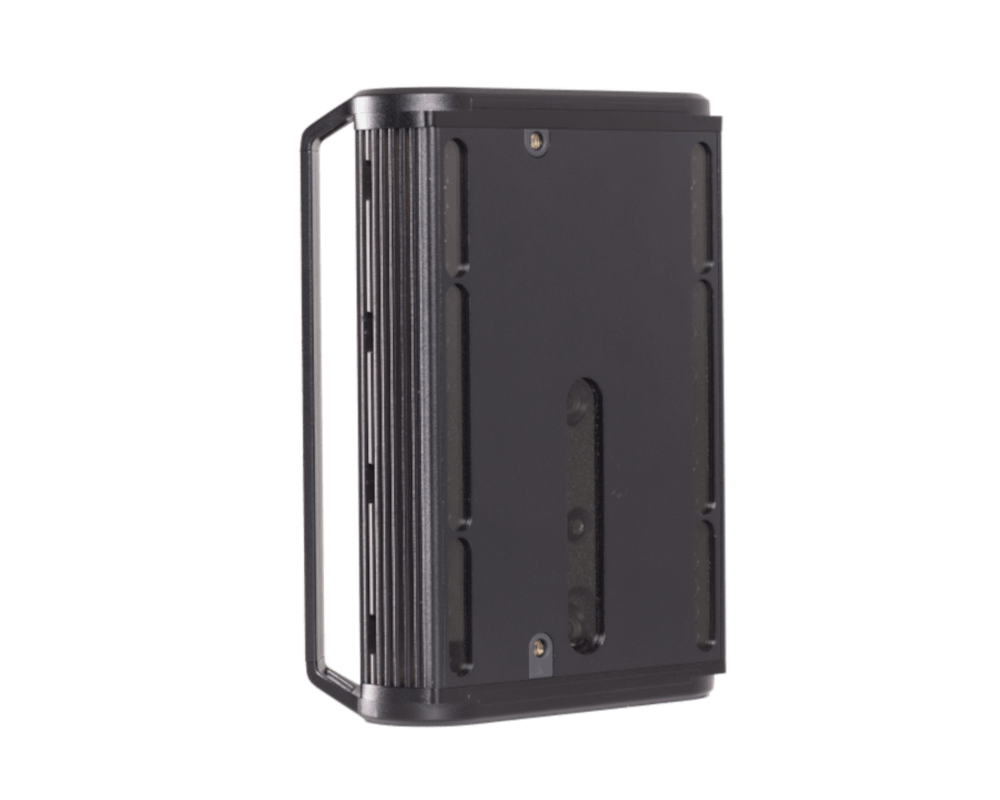

Vector-U200-8-2-adjusted
Vector U200 Vector U70 Mobius UVX 3D
Accurate

Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1

Affordable

Reduce testing costs and drive faster ROI with the U200, available at a comparable price to a Clip-On

Vector U200 Vector U70 Mobius Axiom
Intuitive

Vector is up and running with four easy steps: Install; Mark; Align; and Measure

Versatile

Vector can be configured to work with different mark types, gauge lengths, and outputs

Download Brochure
U200

Product Specs

Download specs pdf
EXTENSOMETER MEASUREMENT APPLICATION
Uniaxial; Tensile, Compressive or Flexural
MEASUREMENT MODES
Strain (%) or displacement (mm/inches)
FIELD OF VIEW
200H x 100D x 40W mm cuboid
RESOLUTION
<0.5 μm
EXTENSOMETER ACCURACY CLASS
Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1 capable
GAUGE LENGTHS SUPPORTED
25 to 180 mm
REAL TIME STRAIN DATA RATE
150Hz
MINIMAL SPECIMEN WIDTH
5 mm flat, 6 mm diameter round
MINIMAL RECOMMENDED SPECIMEN PARALLEL SECTION
32 mm
MAXIMUM TRACKING SPEED
2500 mm/min
STRAIN CONTROL
Compliant to ISO 6892 and ASTM E8
OPERATING DISTANCE
250 to 350 mm
STRAIN SIGNAL INTERFACE
Analogue ±10V BNC
SUPPORTED MARK TYPES*
Rings, filled circles and speckles automatically detected
RECOMMENDED SPECIMEN TEMPERATURE RANGE
-30 to +300 ºC
DIMENSIONS
252H x 73D x 201W mm
WEIGHT (VECTOR MODULE ONLY)
3.1 kg
*Marking kit included.
contact

Book a Demo

For a technical demo and more information on how Vector can meet your measurement needs, please fill out the form below.

Contact Us

“Vector U200 improved student operating time and reduced costs”

The University of Nottingham’s material testing lab upgraded with Imetrum’s Vector U200. It replaced aged extensometers, offering easy use, durability, and faster testing. Students gained high-tech learning, while the lab enjoyed a modern look.

Kieran Orange -Lab Technician
University of Nottingham
Material testing extensometer

Case Studies

see all case studies
Vector
Testing metals to ISO and ASTM standards
Vector
Vector – new generation material test extensometer
Contact

Ready to buy?

If you are interested in obtaining a quote or looking for additional information, please fill out the form.

Contact

"*" indicates required fields

Country
Consent*
This field is for validation purposes and should be left unchanged.
Related products

Our Solutions

Vector extensometers B80
Vector B80
Vector

Biaxial Extensometer

Gauge length: Axial 7.5 to 70 mm Transverse 6 to 25 mm

Minimal specimen width: Axial 1.5 mm flat 2 mm round Transverse 10 mm flat 12.5 mm round

Operating distance: 285 to 315 mm

Find out more
Vector U70
Vector

Uniaxial Extensometer

Gauge length: 10 to 50 mm

Minimum specimen width: 2 mm

Operating distance: 280 to 320 mm
