NON-CONTACT BIAXIAL EXTENSOMETER

Vector B80

Vector B80 sits within our non-contact extensometer range. With enhanced resolution, the biaxial extensometer can also perform uniaxial testing of smaller specimens than U200 or U70.

B80 is capable of meeting ISO 9513 class 0.5 and ASTM E83 class B-1 for gauge lengths greater than 7.5mm, and of specimens with widths greater than 1.5mm. This model excels in biaxial testing, offering insights into material properties. This capability is crucial for Plastic Strain Ratio (r), Strain Hardening Exponent (n) and Poisson’s ratio testing, revealing how the material behaves under various load conditions and providing comprehensive data.

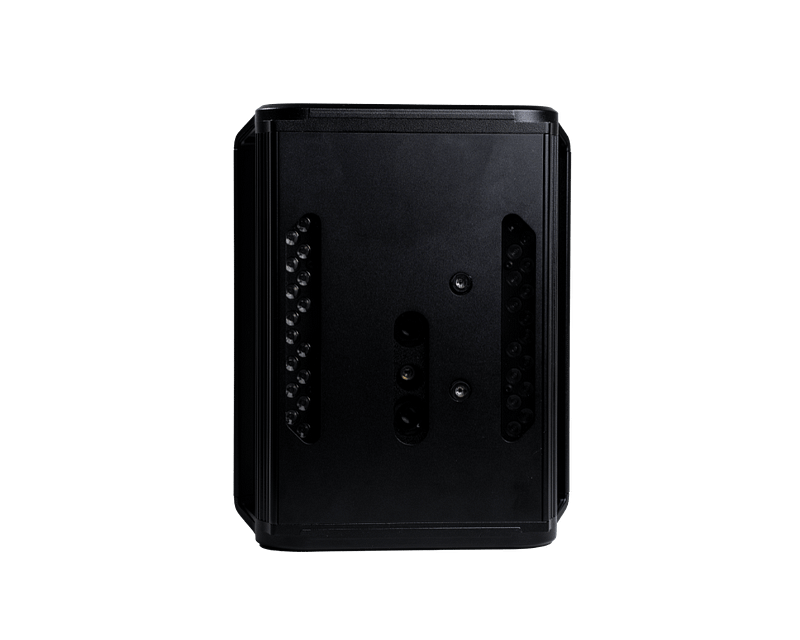

Vector B80 Biaxial extensometer

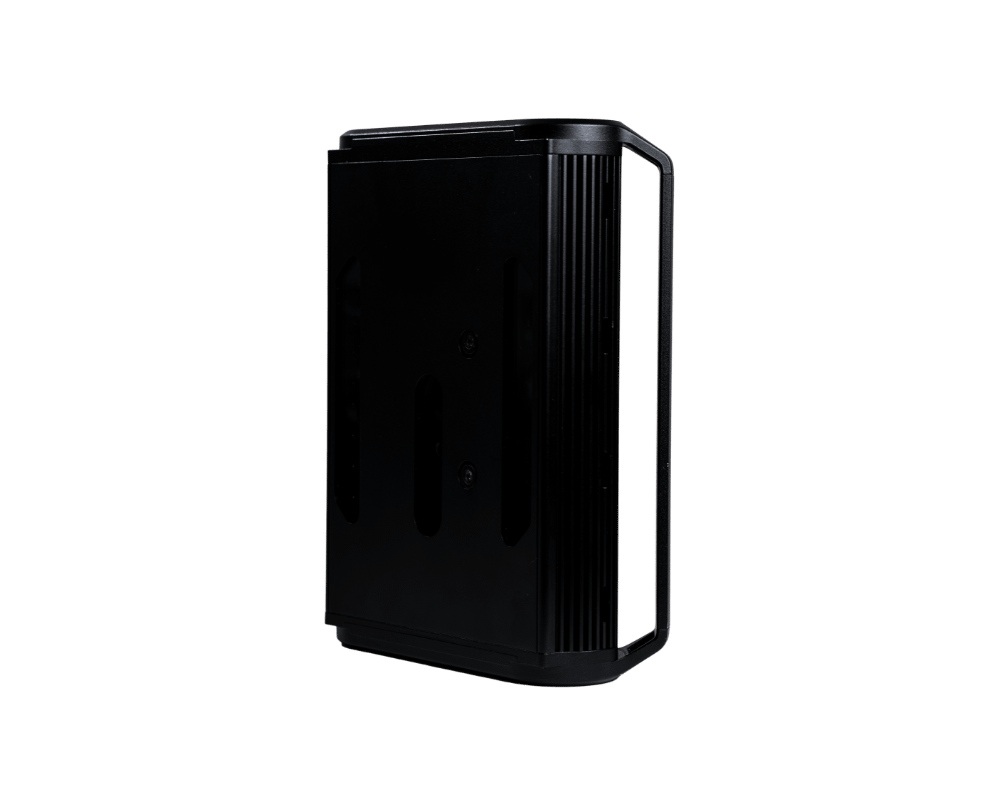

Biaxial extensometer

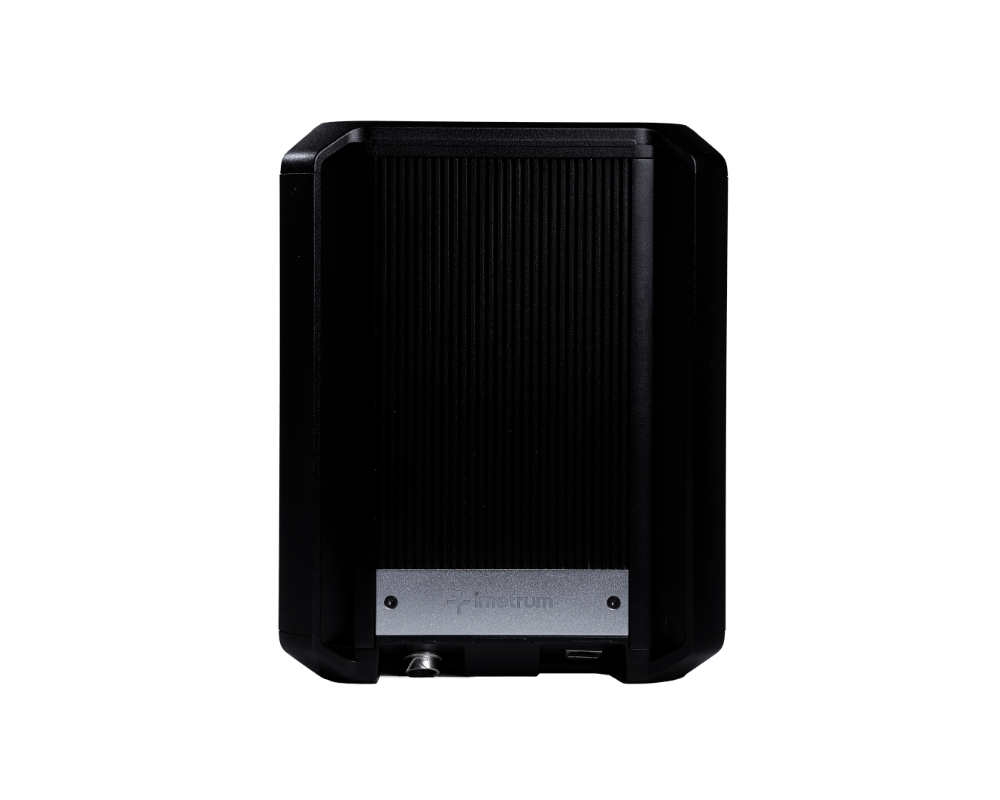

Biaxial extensometer

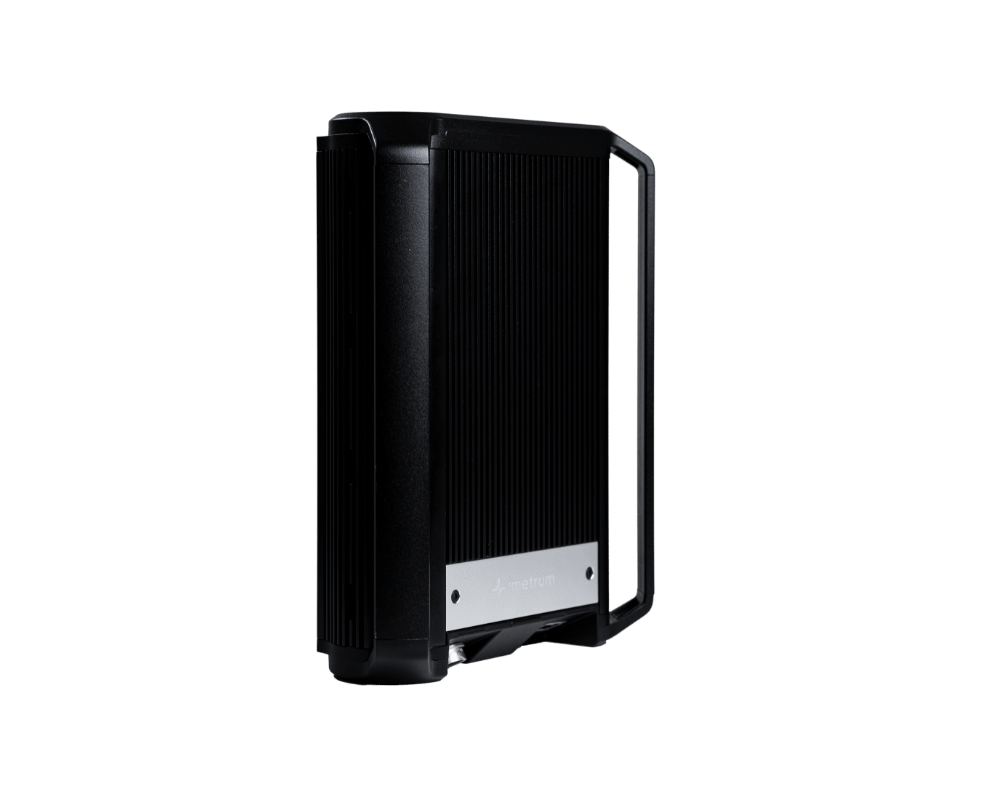

Biaxial extensometer

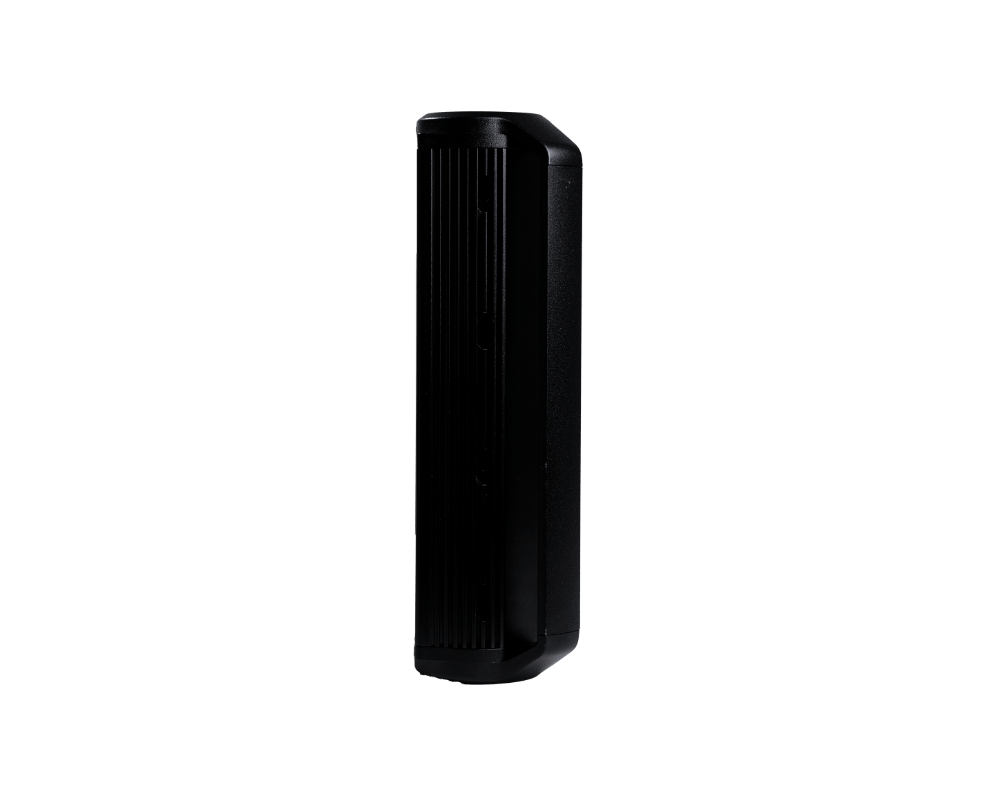

Biaxial extensometer

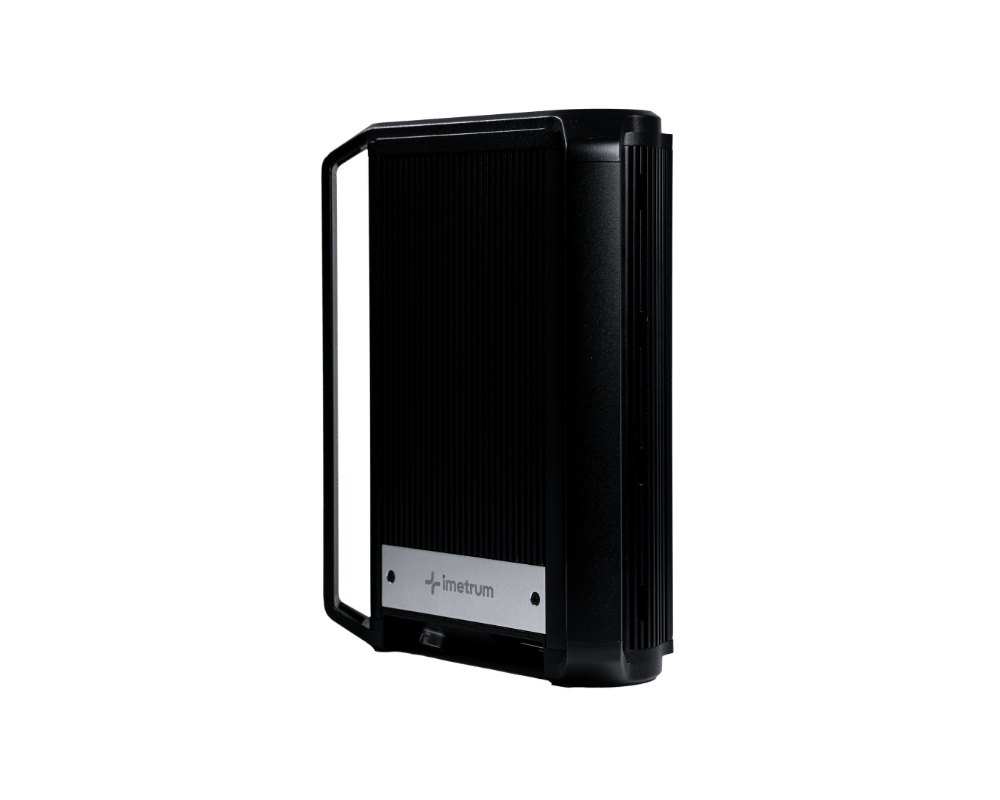

Biaxial extensometer

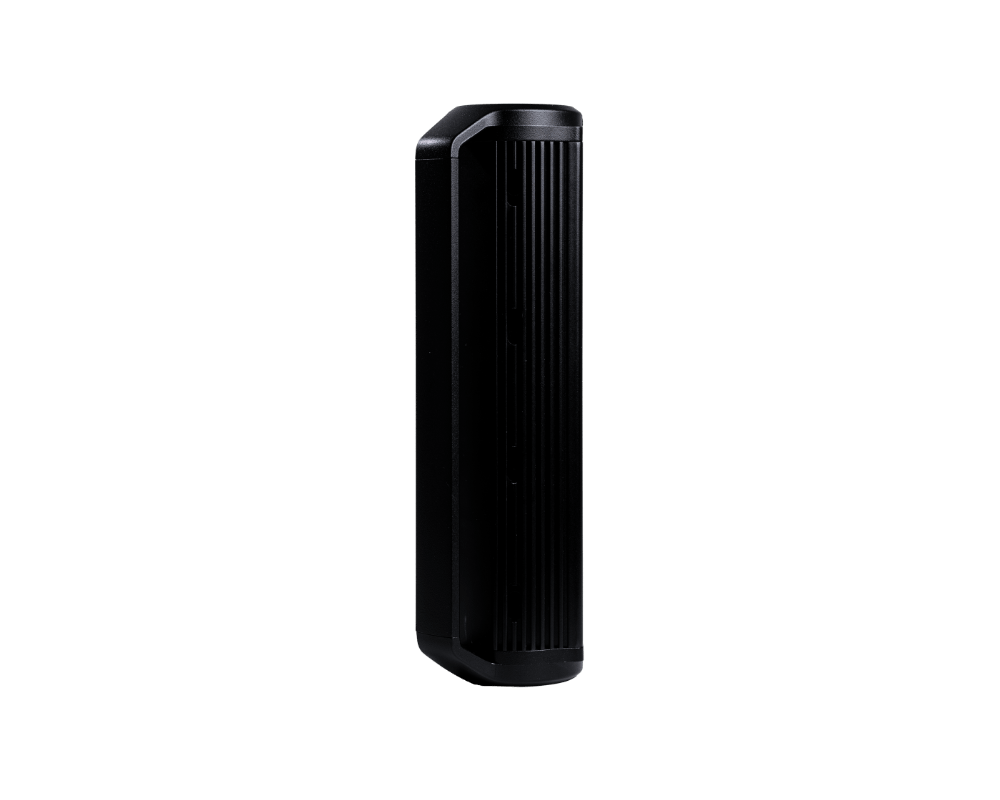

1-7

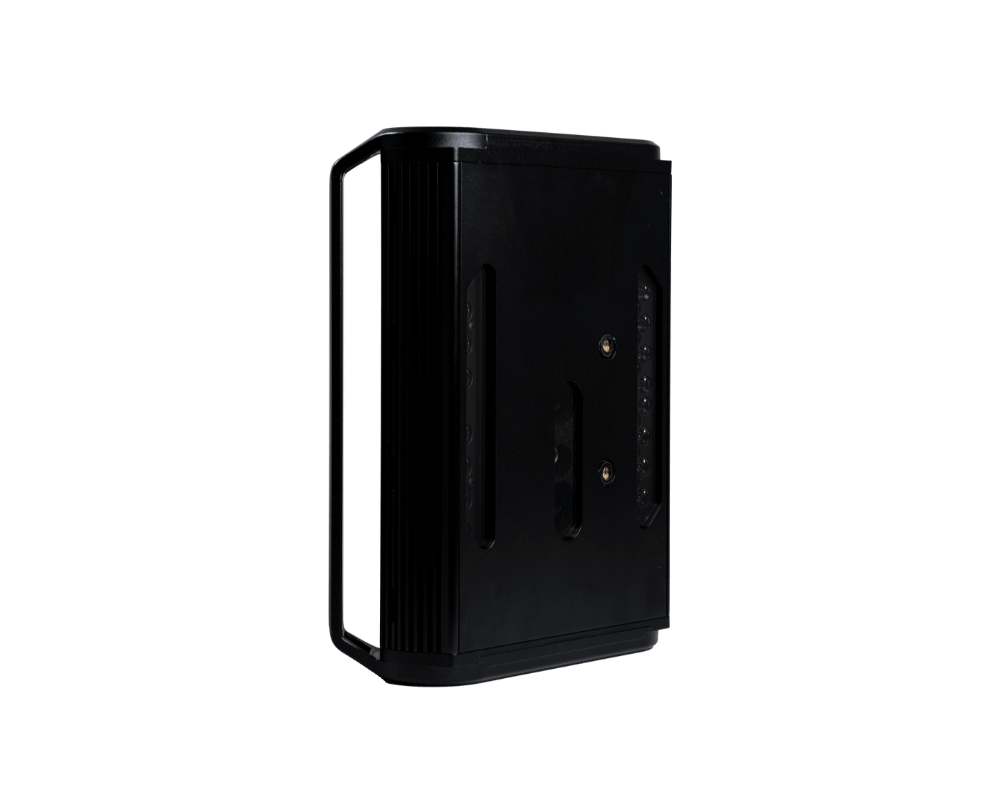

Vector B80
non-contact extensometer
Accurate

Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1

Affordable

Reduce the cost of testing and drive faster ROI with B80

Intuitive

Vector is up and running with four easy steps: Install; Mark; Align; and Measure

Versatile

Vector can be configured to work with different mark types, gauge lengths, and outputs

Download Brochure
B80

Product Specs

Download specs pdf
Extensometer Measurement Applications
Uniaxial; Tensile, Compressive or Flexural Biaxial; Axial with central transverse
Measurement Modes
Strain (%) or displacement (mm/inches)
Field of View
80H x 30D x 30W mm cuboid
Resolution
<0.5 μm
Extensometer Accuracy Class
Meets or exceeds ISO 9513 Class 0.5 and ASTM E83 Class B-1 capable
Gauge Lengths Supported*
Axial; 7.5 to 70 mm (0.3 to 2.75″)
Transverse; 6 to 25 mm (0.24 to 1.0″)
Real time strain data rate
150Hz
Minimal specimen width
Axial; 1.5 mm flat, 2 mm diameter round
Transverse; 10 mm flat, 12.5 mm round
Minimal recommended specimen parallel section
8 mm
Maximum tracking speed
2500 mm/min
Strain control
Compliant to ISO 6892 and ASTM E8
Operating distance
285 to 315 mm
Strain signal interface
Analogue ±10V BNC
Supported mark types**
Rings, filled circles and speckles automatically detected
Recommended specimen temperature range
-30 to +300ºC
Dimensions
252H x 73D x 201W mm
Weight (Vector module only)
3.1 kg
*Minimum transverse gauge length for speckles is 7.5 mm
**Always use marking kit provided
